DIN Rail-mounted Motor Protection Multi-Channel Energy Meter PMAC801A for 3 Phase 4 Wire
Main Documents
Compatible Software
![PiEMS System1vwd](https://ecdn6.globalso.com/upload/p/503/image_other/2023-12/6569400034e0233839.jpg)
Smart PiEMS System

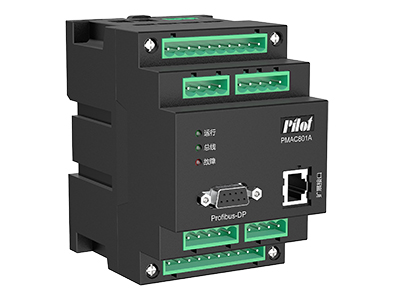

![PMAC801Axgrbnw](https://ecdn6.globalso.com/upload/p/503/image_other/2024-01/659f489e4404686856.jpg)

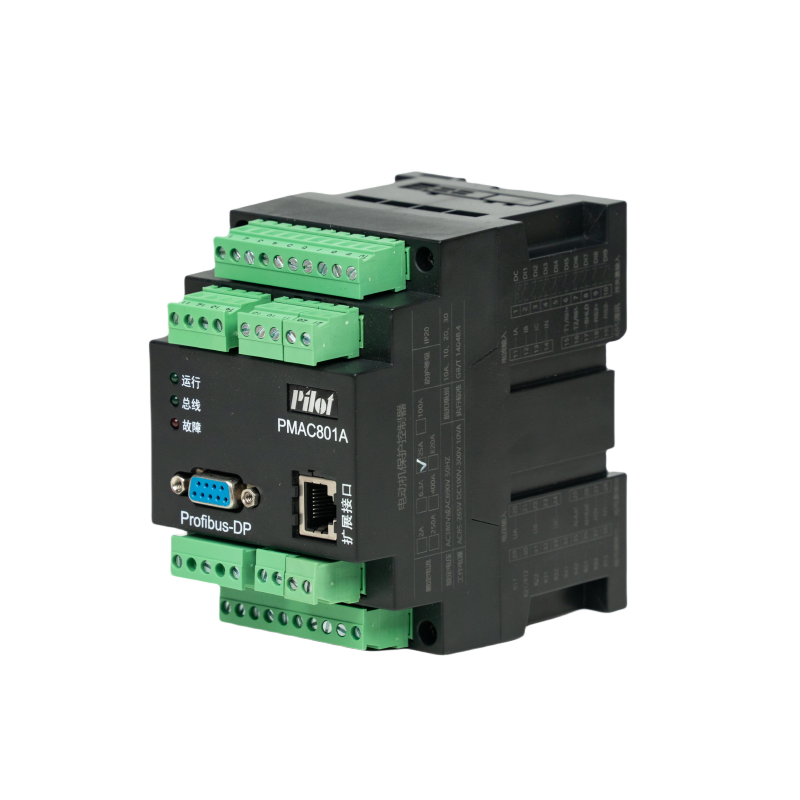

- PMAC801A adopts the modular design and split-type installation, with small size, compact structure, ensured extensibility and convenient installation and can be assembled into 1/4 drawer. It is divided into three parts, i.e. main body, CT module and display module.
- The main body and CT module of PMAC801A is in split design and the smallest complete system consists of main body, display module and dedicated CT module, with fixed dimension for the main body and 2A, 6.3A, 10A, 25A, 50A, 100A, 250A, 400A, 500A and 820A for the dedicated CT module

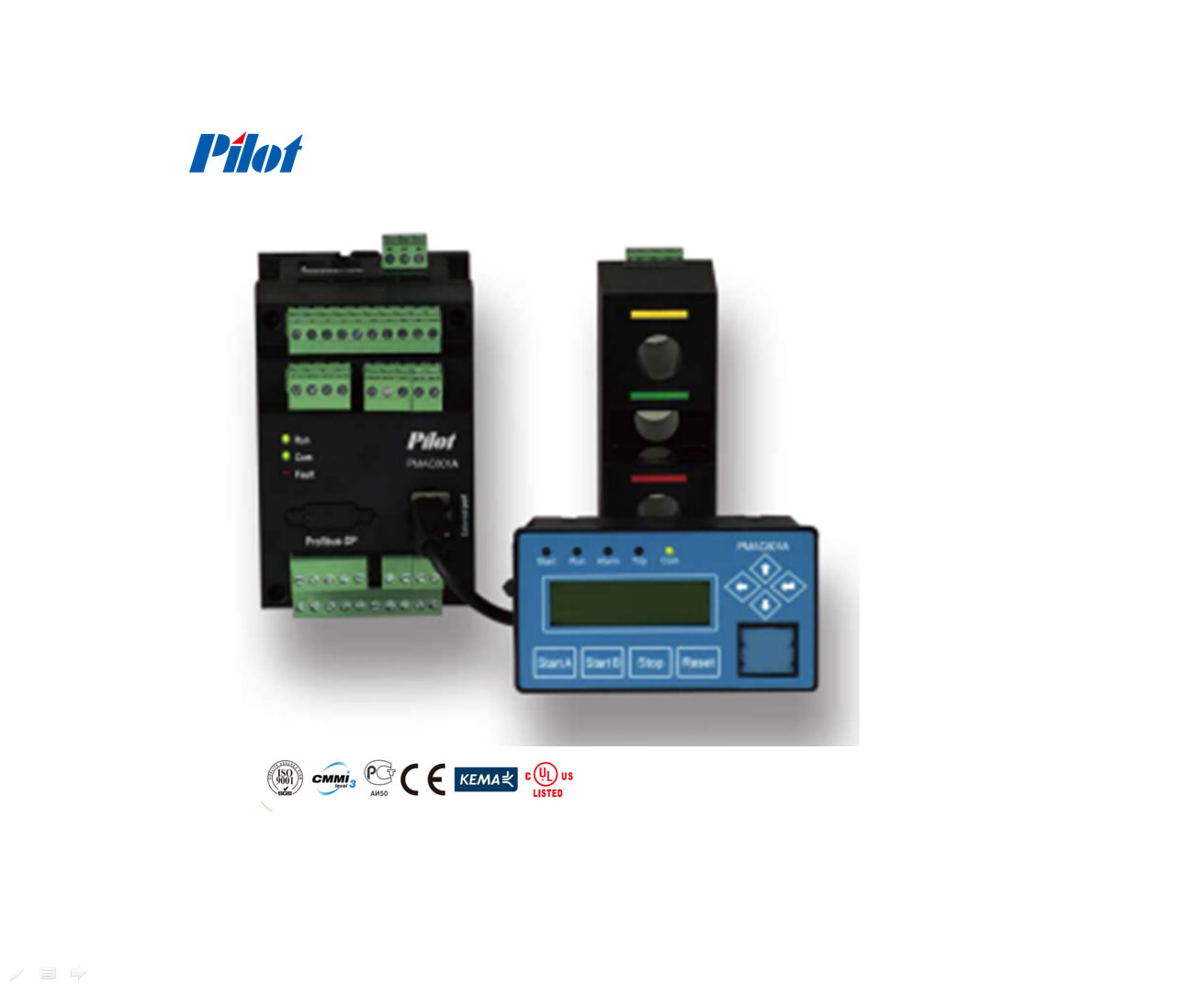

![PMAC801Aaq3](https://ecdn6.globalso.com/upload/p/503/image_other/2024-01/659f48ec2e8ac55897.jpg)
Application
- 1.Lower Voltage MCC
2.Integrated process and electrical control
-
PMAC801A provides the main features as below:
1.Measuring: 1 main circuit + 42 branch circuits, Hall sensor zero point calibration
2.DI: 4 status input (dry contact)for Main breaker and Lightning protection switch
1.With the modular design, this product consists of main module, CT module and display module;
2.Over 21 protection functions can be provided;
3.The three-phase current, grounding/ leakage current, current imbalance rate, three-phase line voltage, frequency, power factor, active power, Reactive power, active electrical degree and many other electrical parameters concerning to the motor circuits can be measured;
4.With built-in direct startup mode, bidirectional reversible startup mode, star/delta startup mode, auto transformer startup mode and many other startup modes, users could independently select corresponding settings based on the startup ways of the motor;
5.The controller body can provide 9-circuit switch inputs, for the inputting of such signals as start-stop signal, reset signal and contactor state;
6.By providing 5-circuit relay outputs, this product can satisfy many startup ways and protection actions, together with protection tripping (or alarm) signal outputs;
7.Provide 1-circuit 4-20mA analog output for DCS, with many parameters selectable;
8.Support one-circuit 4-20mA analog input, one-circuit 4-20mA analog output or one thermal resistance input (refer to ordering information for specific model selection);
9.With 32 times of event logging, record device operation data and relevant information at the time of fault; 10.Maintenance and management are convenient and display module or communication software can be used to detect various parameters including electric parameters, motor's operation states, fault information and stopping times;
11.The flexible restart function can realize various startup demands based on parameter
12.settings in case of short-time power outage of the motor's main circuit.
13.Installation is convenient, with standard 35mm DIN Rail-Mounted, simple wiring and pluggable terminals;
14.The communication is redundant, with 2-circuit Modbus communication and supporting PROFIBUS communication protocol; 15.With wide power supply design, AC or DC power supply is in common use.
3.The three-phase current, grounding/ leakage current, current imbalance rate, three-phase line voltage, frequency, power factor, active power, Reactive power, active electrical degree and many other electrical parameters concerning to the motor circuits can be measured;
4.With built-in direct startup mode, bidirectional reversible startup mode, star/delta startup mode, auto transformer startup mode and many other startup modes, users could independently select corresponding settings based on the startup ways of the motor;
5.The controller body can provide 9-circuit switch inputs, for the inputting of such signals as start-stop signal, reset signal and contactor state;
6.By providing 5-circuit relay outputs, this product can satisfy many startup ways and protection actions, together with protection tripping (or alarm) signal outputs;
7.Provide 1-circuit 4-20mA analog output for DCS, with many parameters selectable;
8.Support one-circuit 4-20mA analog input, one-circuit 4-20mA analog output or one thermal resistance input (refer to ordering information for specific model selection);
9.With 32 times of event logging, record device operation data and relevant information at the time of fault; 10.Maintenance and management are convenient and display module or communication software can be used to detect various parameters including electric parameters, motor's operation states, fault information and stopping times;
11.The flexible restart function can realize various startup demands based on parameter
12.settings in case of short-time power outage of the motor's main circuit.
13.Installation is convenient, with standard 35mm DIN Rail-Mounted, simple wiring and pluggable terminals;
14.The communication is redundant, with 2-circuit Modbus communication and supporting PROFIBUS communication protocol; 15.With wide power supply design, AC or DC power supply is in common use.
Specification
Protection | Start Overtime | Yes | Measure | l,In,l_avg.,I_unbal | Yes | |
Start Over-current | Yes | U,P,Q,PF,F,kwh,I△n | Yes | |||
Over current | Yes | Control | Starting Control | Yes | ||
Current unbalance | Yes | Re-start Control | Yes | |||
Overload | Yes | Self-start control | Yes | |||
Under load | Yes | DI | 9 Dl in main module | Standard | ||
Under load | Yes | DO | 5 DO in main module | Standard | ||
Short circuit | Yes | COM | MODBUS-RTU | Standard | ||
Earth Fault | Yes | Profibus -DP or another MODBUS-RTU | Optional | |||
Eex e overload (tE) | Yes | |||||
External fault | Yes | AO | One 4~20mA DC analog output | Standard | ||
Over voltage | Yes | Al | One 4~20mA DC analog input | Standard | ||
Under voltage | Yes | SOE | Latest 32 event records | Standard | ||
Under power | Yes | SOE | Total running time period | Standard | ||
Phase Sequence error | Yes | Present running time | Standard | |||
TV open circuit | Yes | Total stop operation time | Standard | |||
Wring Checking | Yes | Present stop operation time | Standard | |||
Overflow fault | Yes | Total stop operation time | Standard | |||
Temperature (PTC/NTC) | Optional | Total trip times | Standard | |||
Leakage current | Optional | Longest starting time | Standard | |||
Analog Input | Optional | Max.starting current | Standard |
