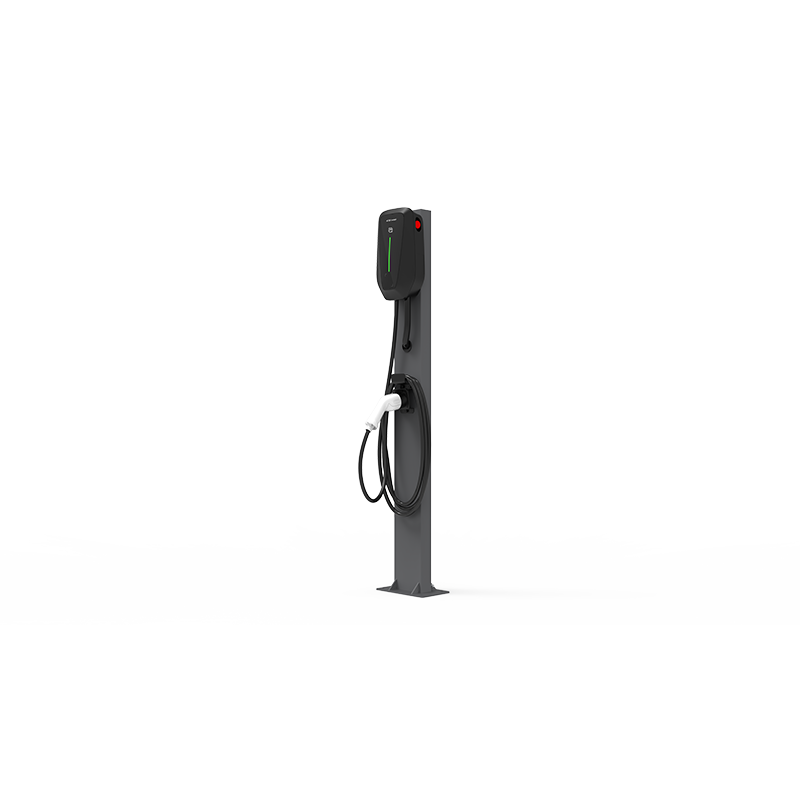

pedestal mount AC EV Charger PEVC2108E side.png

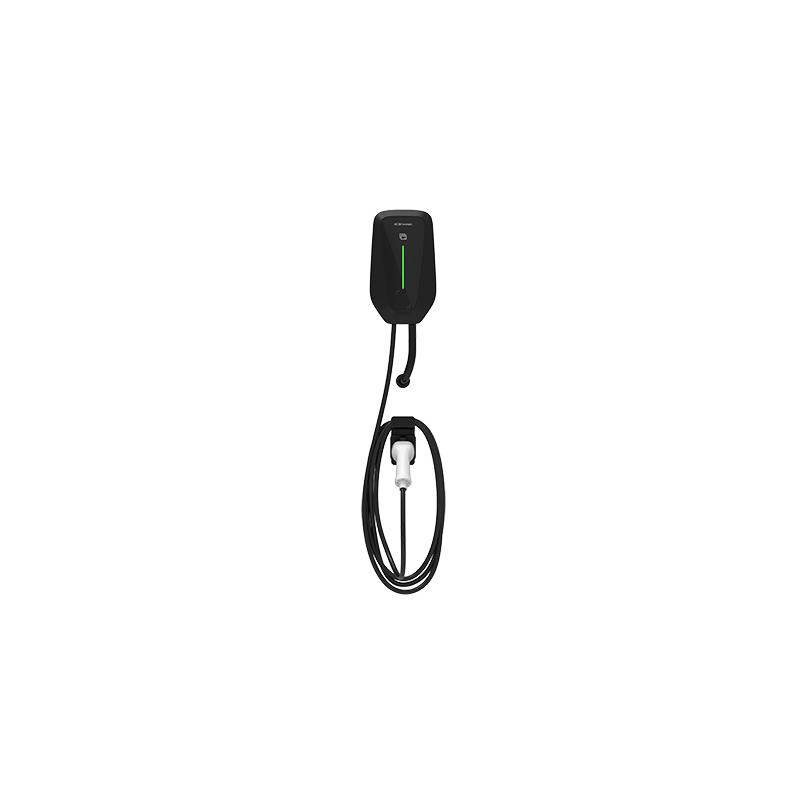

wallbox AC EV Charger PEVC2108E front.png

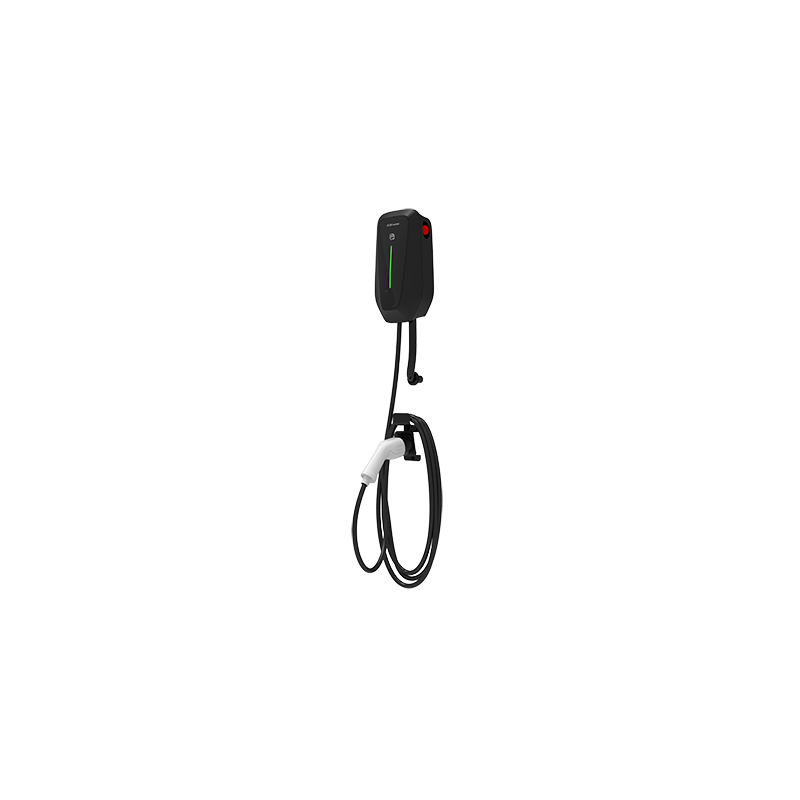

wallbox AC EV Charger PEVC2108E side.png

Pilot Home AC EV Charger PEVC2108E from 3kW to 22kW

PEVC2018E is a basic AC EV Charger ,which include wall-mounting and stand-mounting. Suitable for home and business indoor and outdoor uses. Elegant design and superior performance with all-round protection functions such as IP65 protection level, good dust proof and waterproof performance, Type A+6mA DC leakage protection, accurate measurement of charging data. It supports a variety of charging modes, like plug and play charging, swipe charging, APP charging, scan code charging. Compatible with Bluetooth/WiFi/Ethernet/4G and other communication functions.

Highlights：
Connector: Type 2, Type 1
Output power: 3.5kW, 7kW, 11kW or 22 kW
Communication: 4G/ Ethernet/ WiFi/ Bluetooth
Precision: accuracy Class 1.0 embedded metering
Protection: IP65, IK08
Start mode: Charging via QR code scanning, RFID card
Mounting：Wall-mount/Stand-mount
Charging Protocol：OCPP-1.6JSON
Certificates：CB, CE

Main Documents

Pilot AC EV charger PEVC2108E User Manual

Compatible with Most Electric Vehicles

Customizing all types of charging connectors makes it highly flexible and compatible with most electric vehicles, including Tesla,Volkswagen, Stellantis, Mercedes-Benz, BMW, Volvo, MG, BYD, and etc.

Multi-directional protection

PEVC2108E series has an IP65 patented design case for outdoor and indoor use.

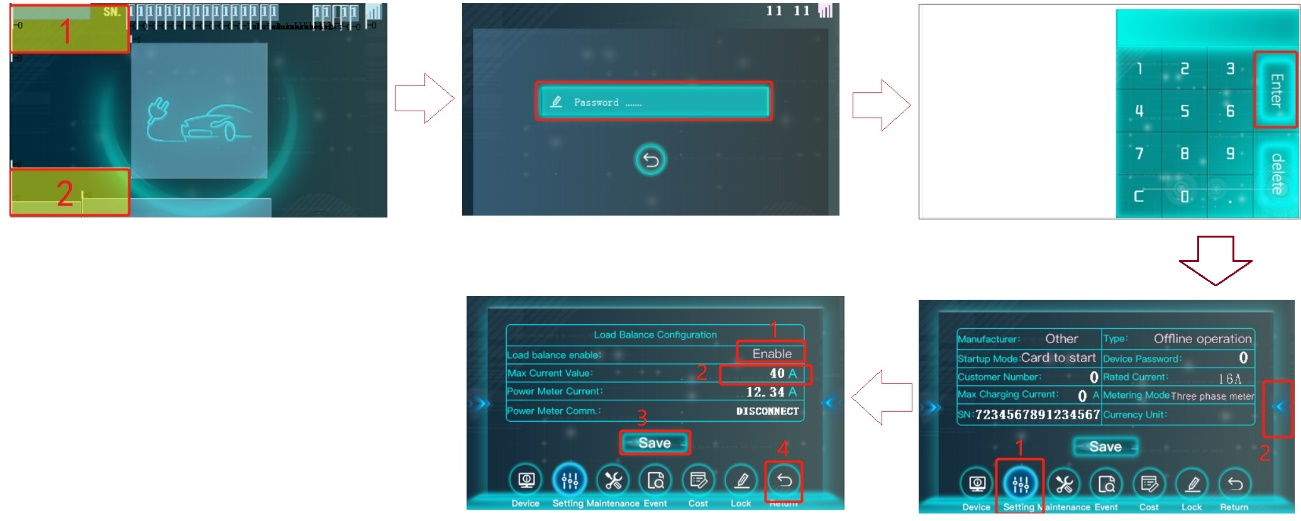

Optional Load Balancing Function

This function guarantees the safety of electricity and prevents overload, allowing for efficient and secure charging of your electric vehicle.

man-using-digital-tablet-while-charging-electric-car3cp

User-Friendly Operation

Pilot EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:

View charging data and status;

Set up various charging configurations, charging current, monitoring mode, etc.;

Scheduled charging;

Firmware update.

cases

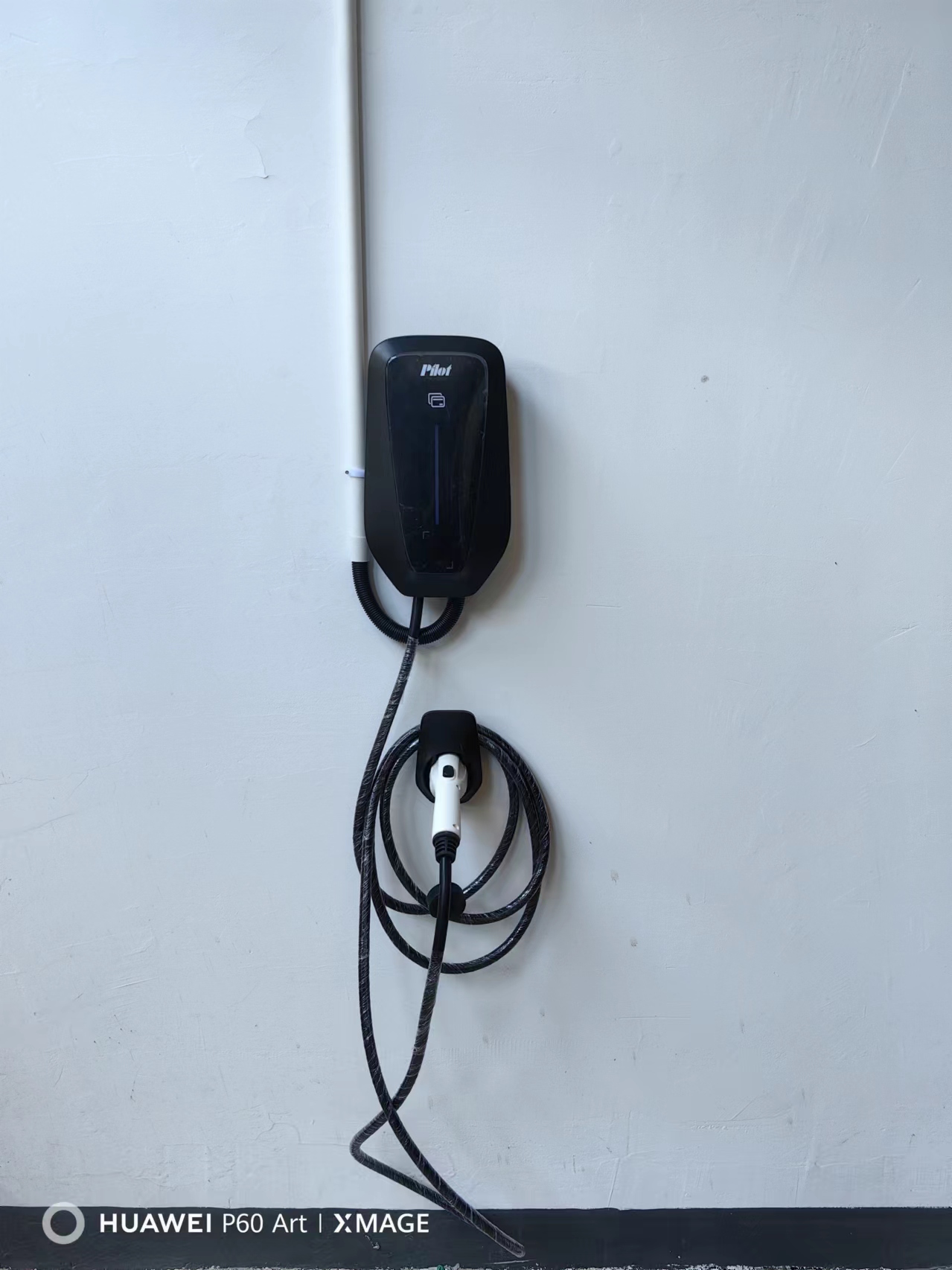

Ac EV chargers type2 7kw 11kw 22kw PEVC2108E Thailandn5y

Project: AC EV Charger PEVC2108E/11W/16A/Type 2/WiFi+4G+Bluetooth

Application：Real Estate Household

Location:Thailand

SPECIFICATION

Parameter type	Description	PEVC2108
Input parameters	Power Supply	1P+N+PE	3P+N+PE
	Rated voltage	230VAC±10%	400VAC±20%
	Frequency	50/ 60Hz
Output parameters	Number of output ports	1
	Output voltage	230VAC±10%	400VAC±20%
	Output current	16A/ 32A
	Output power	3 kW/ 7 kW	11 kW/ 22 kW
Protection functions	Overvoltage/Undervoltage protection	√
	Over current protection	√
	Short circuit protection	√
	Lightning protection	√
	Emergency stop protection	√
	Leakage protection	RCD Type A + 6mA DC
Basic parameters	Electric energy measurement	Accuracy Class 1.0 energy meter
	Display mode	Bluetooth APP display
	Plug cable length	5m
	Communication	Bluetooth/Ethernet/ WiFi/ 4G LTE
	Protocol	OCPP-1.6 (JSON)
	Shell material	(ABS+PC)-Blend
	Shell color	Metallic Grey
	Connector type (IEC 62196-2)	Type 2
	Start Mode	Plug&play/ RFID card/ APP
	Dimensions(WHD)	208mm358mm102mm
Environmental Parameters	Operating temperature	-30℃~50℃
	Storage temperature	–40°C ~ 80°C
	Altitude	≤2000m
	Humidity	≤95% ，non-condensing
	Protection level	IP65
